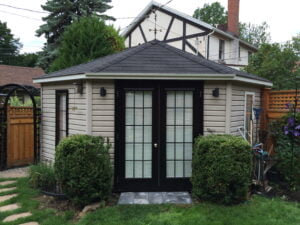

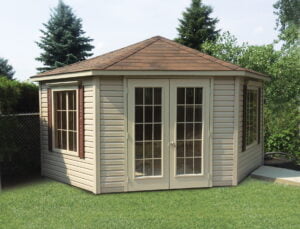

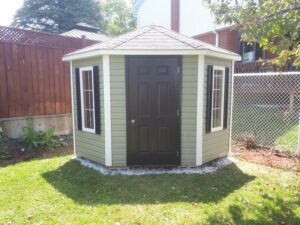

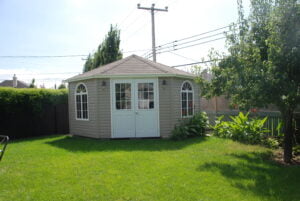

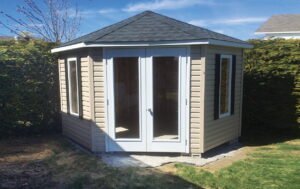

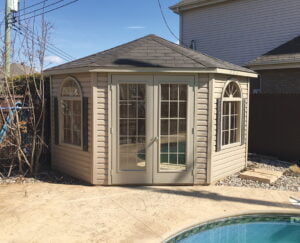

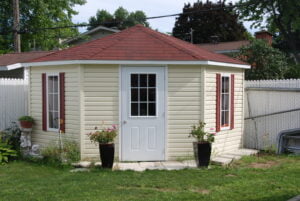

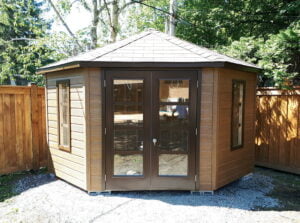

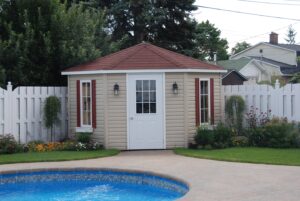

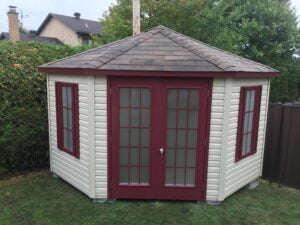

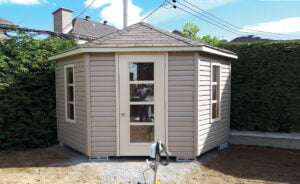

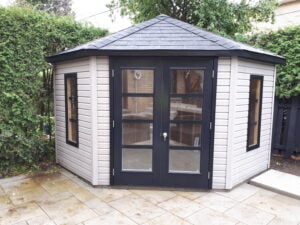

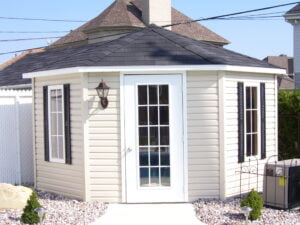

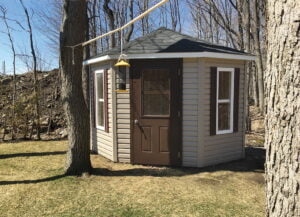

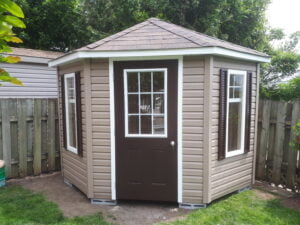

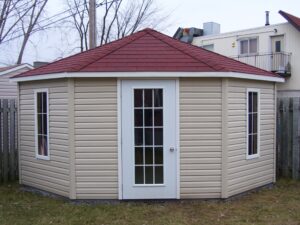

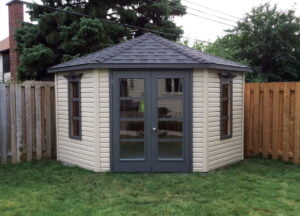

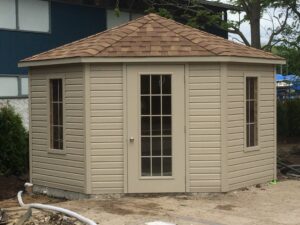

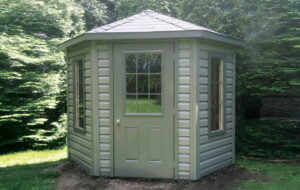

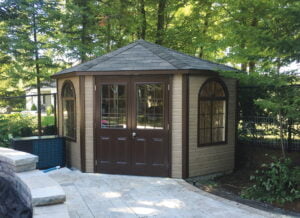

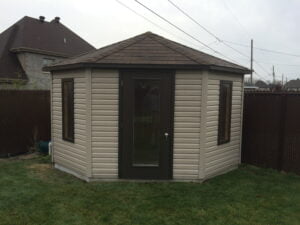

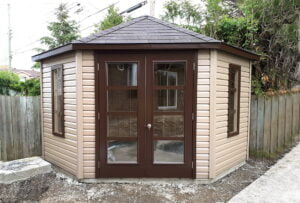

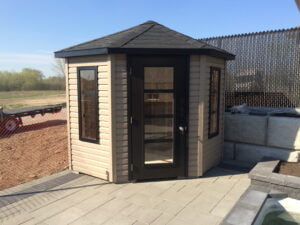

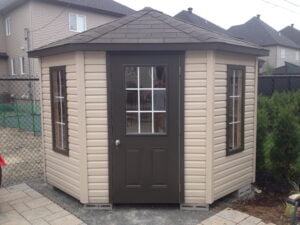

The Diamant shed model

See all photos
Hide photos

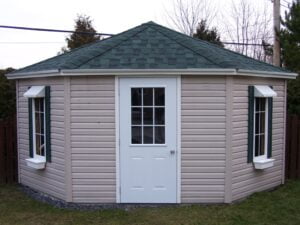

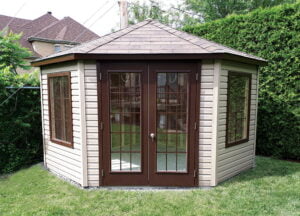

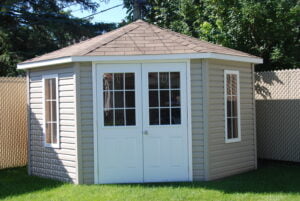

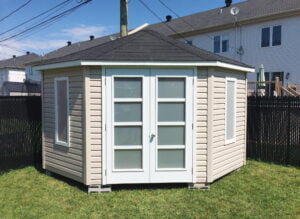

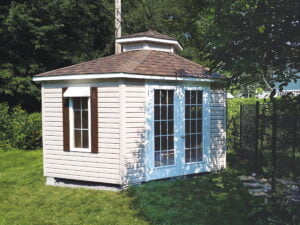

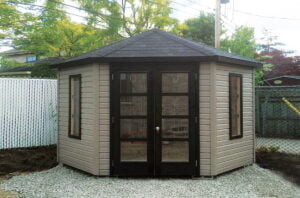

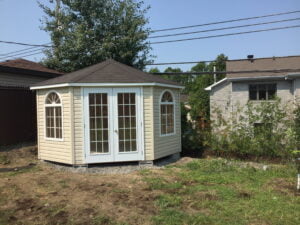

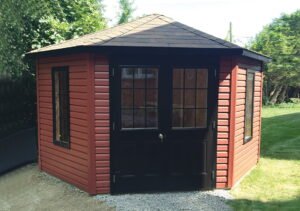

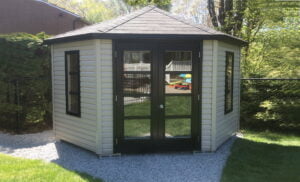

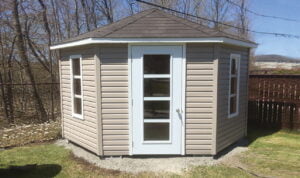

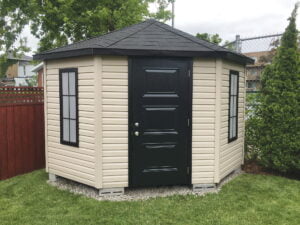

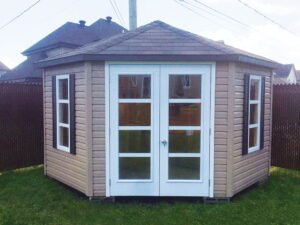

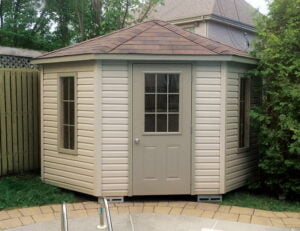

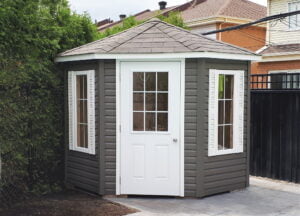

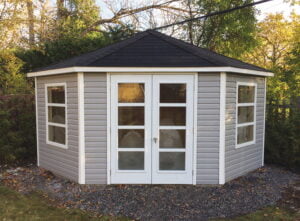

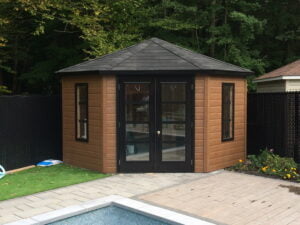

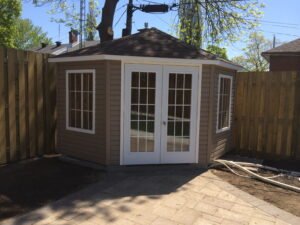

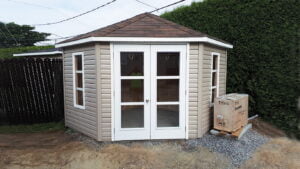

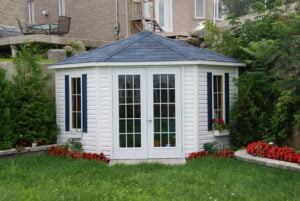

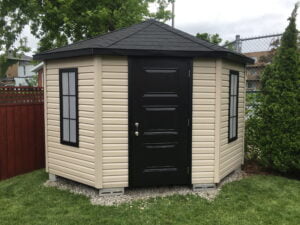

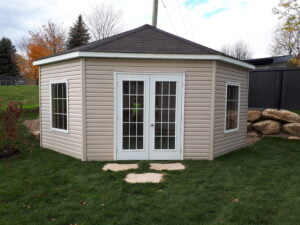

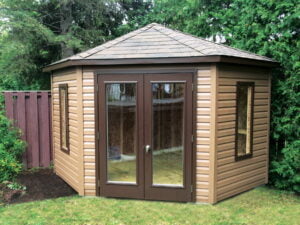

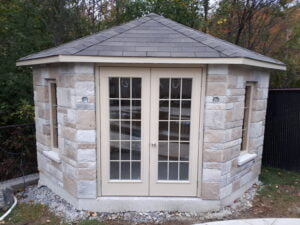

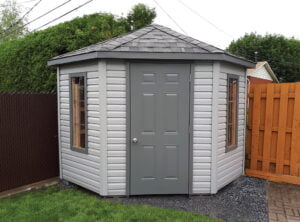

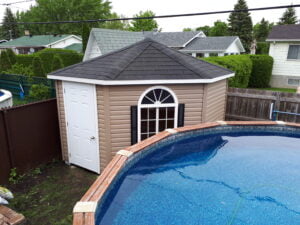

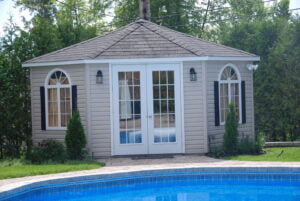

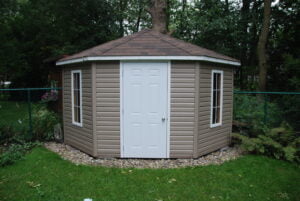

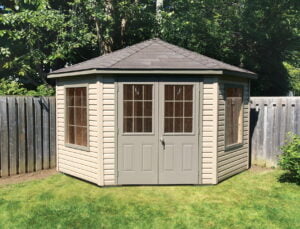

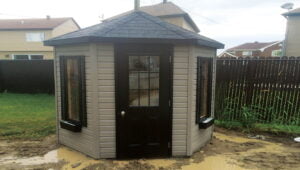

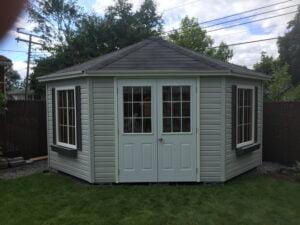

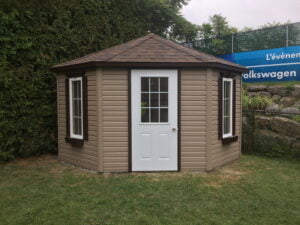

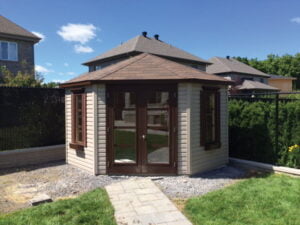

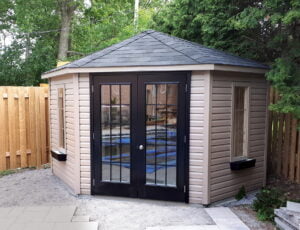

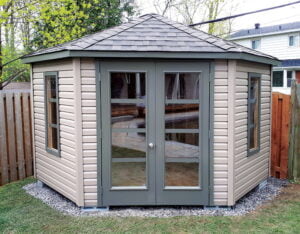

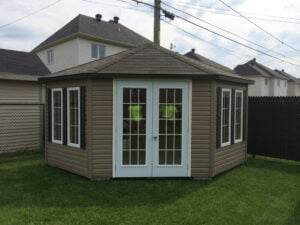

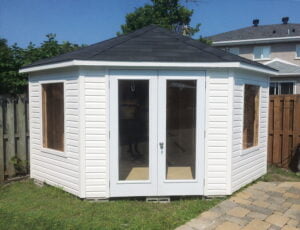

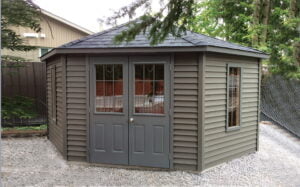

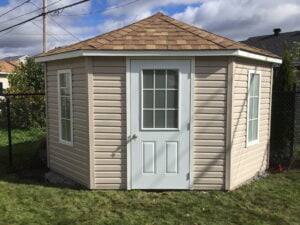

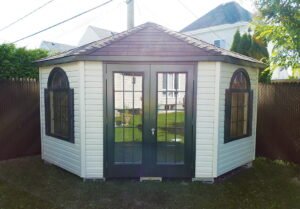

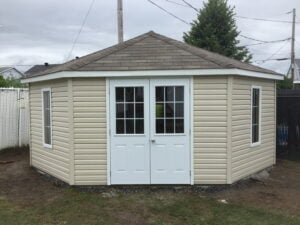

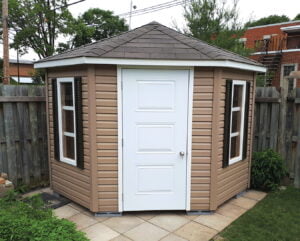

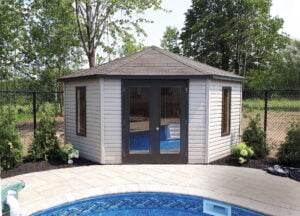

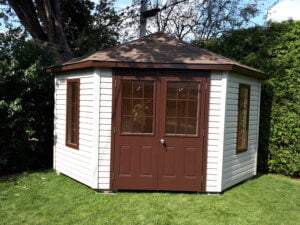

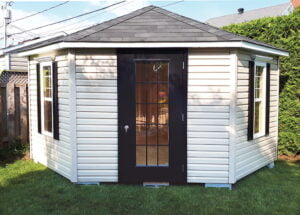

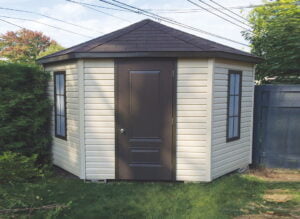

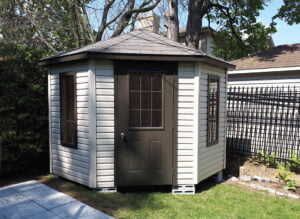

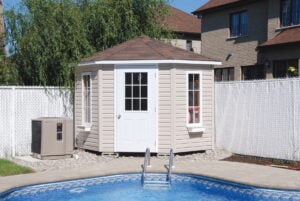

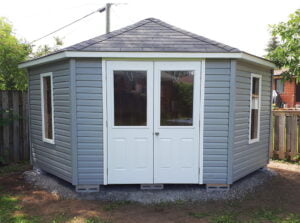

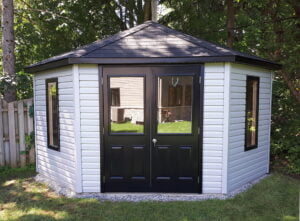

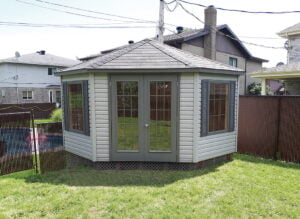

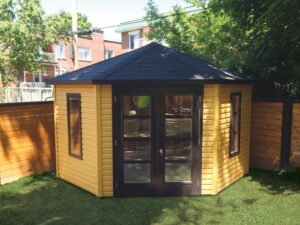

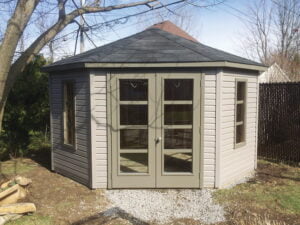

As described by its name, this shed is made in the shape of a diamond. Its particular dimensions make it perfect for a corner installation to minimize lost space in the yard and maximize storage space inside the shed. Its sturdy and stylish cathedral ceiling offers up to 50% more room and shelving inside and doesn’t require snow removal in winter. Choose your size between 43 and 171.50 square feet. Several colours and sidings, as well as a wide variety of doors, windows, and accessories are available to customize your shed.

Download this model’s PDF document
Request a quote
Plan cabanon Diamant

A

B

C

D

E

Height

Sq. ft.

7 x 7

84″ 42″ 59 3/8″ 118 3/4″ 93 7/8″ 9′ 43

8 x 8

96″ 48″ 67 7/8″ 135 3/4″ 107 3/8″ 9’3″ 56

9 x 9

108″ 54″ 76 3/8″ 152 7/8″ 120 3/4″ 9’5″ 71

10 x 10

120″ 60″ 84 7/8″ 169 3/4″ 134 1/8″ 9’8″ 87,5

11 x 11

132″ 66″ 93 3/8″ 186 5/8″ 147 5/8″ 9’11” 105

12 x 12

144″ 72″ 101 7/8″ 203 5/8″ 161″ 10’2″ 126

13 x 13

156″ 78″ 110 3/8″ 220 5/8″ 174 3/8″ 10’5″ 148

14 x 14

168″ 84″ 118 7/8″ 237 5/8″ 187 7/8″ 10’8″ 171,5

COMPETITIF
Series

AUTHENTIQUE
Series

Diamant
Préférence
4 Versants

Models
Diamant
Préférence
4 Versants

Models
Mirage
Model

Floor

Studs spaced at 16” 12” 16”
5/8” plywood X X X
Reinforced in the middle n/d 8’& + O
Concrete blocks (depending on the size) X X X
Integrated beams n/d X O
Beams under the floor X n/d n/d
Wood floor’s height of the step* 11” 7,5” 7,5”

Walls

Studs spaced at 16”c/c 16”c/c 16”c/c
Covered with a wafer board (OSB) X X X
Vinyl siding Prova D4.5
Driftwood D4.5
Avanti D4
Concord D4
Avanti D4
Concord D4
Choice of colors for vinyl siding 14 14 14
Inside height 77” 78” 78”
Siding joints on exposed cabana surface (front & sides) Yes None, max 12’ None, max 12’

Roof

Studs spaced at 24” 19” 24”
Covered with a wafer board (OSB) 7/16” X X X
25 years roof shingle (choice of colors) 12 12 12
6″ cornices with ventilated soffit and aluminum facia n/d X n/d
Cornices with aluminum moulding X n/d X
Roof slope 20o – 26o 20o – 26o 16o
Cathedral roof style X X X

Door

Steel door painted in white X X X
Key-lock entry X X X
3 anti-theft hinges X X X
Aluminum covered frame X X X
Height 75” 79” 79”
Choice of hinges side O X X

Windows

Aluminum windows X X X
Lattice O X X
Choice of sizes O O O

Warranties

Structure 3 years 4 years 4 years
Ground shifting** n/d 2 years 2 years
Aluminum and vinyl 40 years 40 years 40 years
Shingles 25 years 25 years 25 years
Door 4 years 4 years 4 years

X = Standard O = Option n/d = Not available
* For a leveled ground
** Except concrete floors
Characteristics subject to change without notice.
